DAVEY XF 211SS Single Stage Centrifugal Transfer Pump CY70-90

Name: DAVEY XF 211SS Single Stage Centrifugal Transfer Pump CY70-90 - Rey Lenferna
SKU: CY70-90!040-EQ-DOPU-Davey

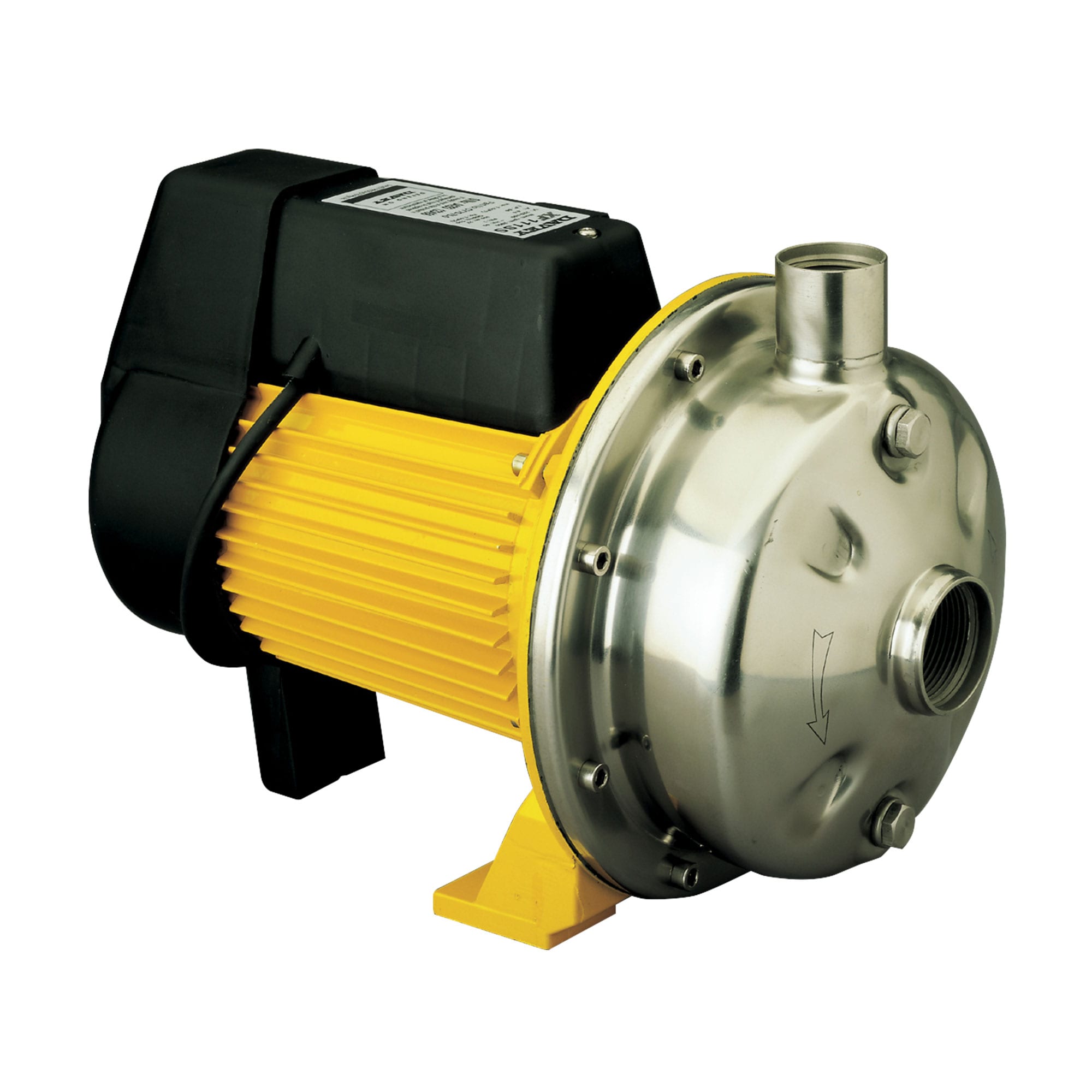

Robust and Compact Single Stage Stainless Steel Centrifugal Pump Dricven by a TEFC electric motor Sinfle Phase .

SKU: CY70-90!040-EQ-DOPU-Davey Categories: Residential, Water Pumps, Water Solutions Tag: Residential

Request a quote

This field is hidden when viewing the form
Product Model
Name*
First Last
Untitled
Email*
Phone*
Address
Street Address Address Line 2
Untitled
CAPTCHA

Description

Motor and Pump manufactured from quality corrosion resistant materials. Pump Casing, Impeller and Shaft in stainless steel. Maximum Constant Working Temperature (+80 deg.C)

Additional information

Brand	DAVEY
Model	CY70-90
Max. Water Temperature	80° C
Inlet Size	11/4" BSP Female
Outlet Size	1" BSP Female
Maximum Flow ( lpm)	200
Maximum Pressure ( kPa	300
Output Power kW (P2)	1.3 kW
Volts/ hertz / phase	240/50/1
Speed (rpm)	2900
Maximum Total Head (m)	30
Applications	Domestic Water Supply – Water Transfer, Pressure Boosting, Dairy Washdown, Washing Systems, Small Scale Irrigation
