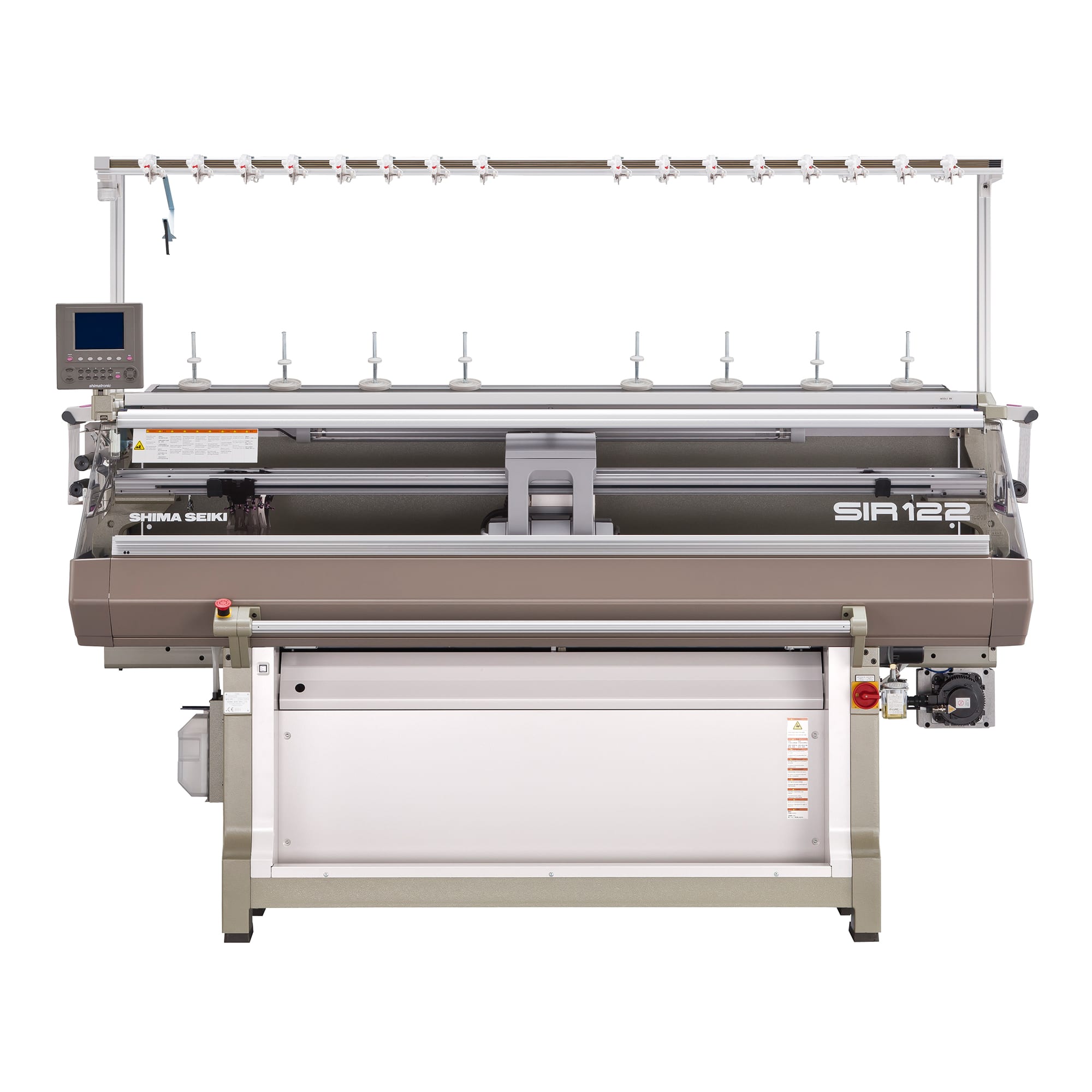

SHIMA SEIKI SIR122 Flat Knitting Machine

As SHIMA SEIKI’s newest generation of standard workhorse machines, the new SIR®122 is the new global standard for shaped knitting, having inherited the know-how and experience accumulated over the years as the leading manufacturer of computerised flat knitting machines.

SKU: SIR122 Categories: , ,
  • Hidden

Description

Productivity is increased with a maximum knitting speed of 1.4 meters per second, combined with the R2CARRIAGE® System that improves efficiency in each course through quicker carriage returns. It also carries over proven SHIMA SEIKI technology such as our
renowned Digital Stitch Control System (DSCS®), spring-loaded Full-Sinker System, Stitch Presser, Takedown Comb and Yarn Gripper and Cutter which is now equipped with a new lint remover for reduced maintenance. Equipped with the 21-intarsia carrier option, SIR® allows great freedom in knitting intarsia garments, aided by tremendously capable design system software.
Production lead times can be dramatically reduced using the Automatic Intarsia Carrier Setting software featured on our SDS®-ONE APEX3 apparel design workstation. Made-in-Japan quality, reliability, productivity, user friendliness and cost-performance combine to satisfy the high expectations of the world’s fashion industry.

Additional information

Brand


Variation

SV


Gauge

5.7.12.14


Knitting Width

Variable stroke, max 48” (122cm)


WideGauge®

Wide range of gauge knit on a single machine (SV only).


Knitting Speed

Max 1.4m/sec. Knitting speed varies according to yarn, gauge and other knitting conditions. Speed can be programmed for 10 separate categories.


Stitch Density

120 levels, electronically controlled


Racking

1/2 and1/4 pitch also available from any position
Motor-driven. Max 1-inch racking to each side ( 2 inches total )
SV5G: Max 6.5-pitch racking to left side and max 6-pitch racking to the righ


Knitting System

Double KNITRAN® system, single carriage (R2CARRIAGE® system).


Transfer

Simultaneous transfer, front or back, independent of carriage direction. Split stitch possible without exchanging yarn carriers.


Sinker System

Spring-type moveable full-sinker system. Provides gentle holddown instead of forcibly pressing down yarn. v-Sinker TM standard on 14G, 16G and 18G .


Stitch Presser

Special motor-drive. On/off adjustment. Press-down amount can also be set according to knit, transfer, etc.


Needle Hook Conversion

Conversion between LL-size and MM-size possible without exchanging cams. ( SV7G, SV12G and SV14G only )


Needle Selection

Full jacquard selection via special solenoid actuators


Setup Device

Takedown comb with special setup needles


Takedown Device

Main/sub rollers. Changeable 99 levels, automatically adjustable on each level. Automatic opening and closing upon command


Yarn Cutter

Single-unit system includes 1 yarn cutter and 2 yarn grippers. Left side standard. Lint remover.


DSCS®

Consistent loop length by digital control method. 8 lightweight, compact encoder(s).(SV5G conventional encoders). Left side standard.


Yarn Feed Roller

10 positions on left side standard. Left side double roller standard ( SV5G and SC18G only ). 10 positions on right side ( SV5G only ).


Side Tensions

12 on each side. Brake disk with multi-step adjustable dials. Both sides standard.


Yarn Carriers

9 normal carriers + 1 plating carrier (accessory )


Top Tension

16 units ( SV5G and SV7G only 24 units)
One-touch easy threading. Large knots cause machine stop
Small knots cause 0-9 courses at specified knot detection speed, then automatically resume at set speed.


Stop Motion

Yarn break, large knot, fabric pileup, shock detection, piece count, over-torque, program error, etc.


Drive System


Cleaner

Special blower operated cleaner


Safety Devices

Emergency stop switch. Emergency power off device.
Full safety cover for noise-suppression and dust-proofing with stop motion sensor and interlock mechanism
Ultra-low speed “crawl” setting. CE Mark. Operation lamp


Operation Lamp

Green/normal operation. Flashing green/normal stop. Flashing amber/abnormal stop.


Data Input

USB memory interface. Ethernet 10/100 BASE-T network interface.


Pattern Memory

25,165,824 bits (1,024 wales × 8,192 addresses )


Control Unit

Built-in controller. Stored program for flat knitting machine.


Control Display

Available in English, French, Italian, Spanish, Portuguese, Turkish, Arabic, Russian, Vietnamese, Chinese, Korean and Japanese.
Help/Message function ( for cleaning and lubrication)
Monochrome LCD panel. Editing possible via display panel operation


Back-up Power

Power supply for resuming knitting after power failure.


Power
