Name: RAINBIRD 63 mm Globe Solenoid Valve Model PGA - Rey Lenferna
SKU: RB100PGA63

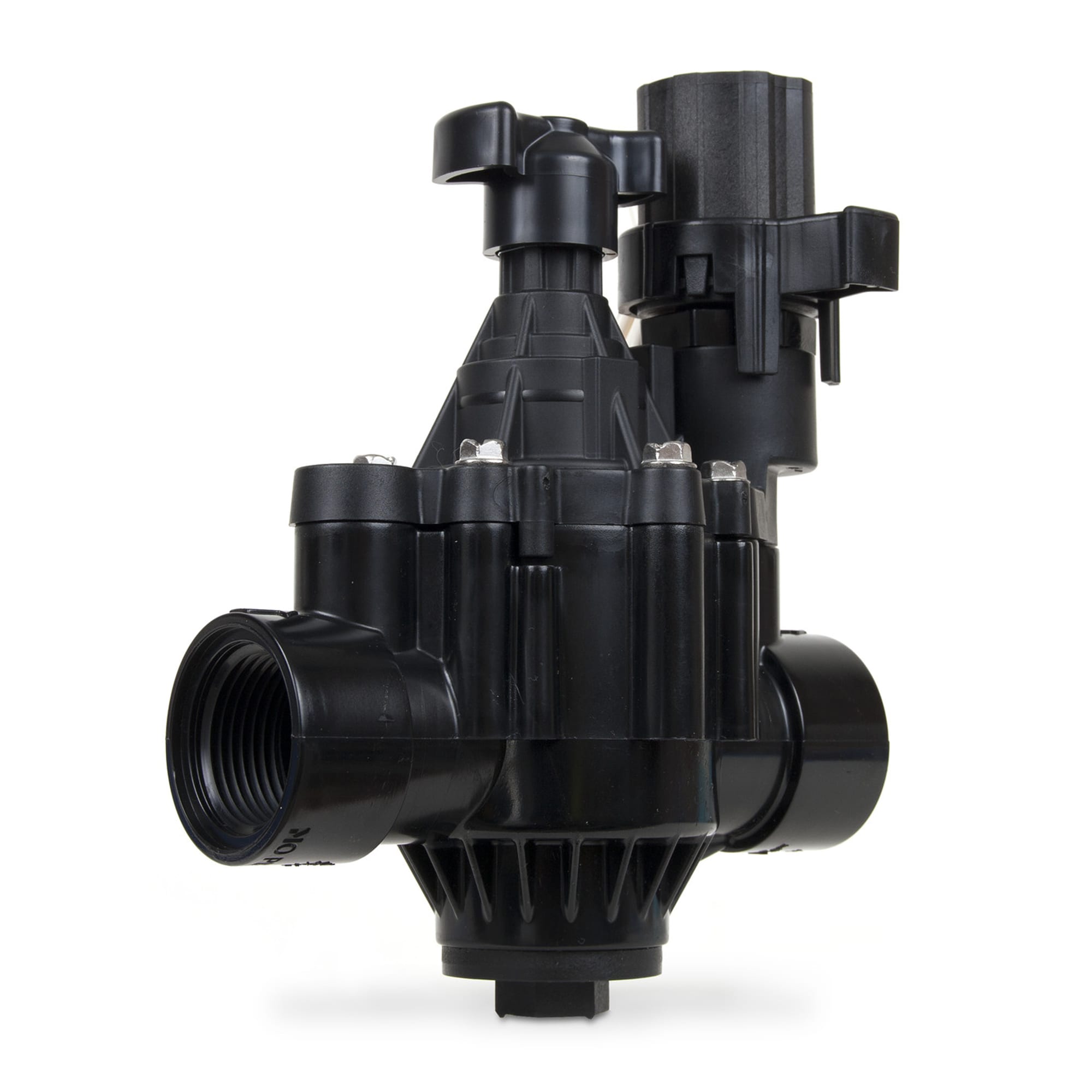

RAINBIRD 63 mm Globe Solenoid Valve Model PGA

2” Plastic Globe Solenoid Valves
Water tight seal between body and bobbet for maximum confidence, even in the most extreme conditions
Multi-drive screws
Robust electrical design fir quietand reliable performance

Hidden
Product Model
Name*
First Last
Untitled
Email*
Phone*
Address
Street Address Address Line 2
Untitled
CAPTCHA

Additional information

Brand	RAIN BIRD
Model	RB200PGA
Operating Range	•Pressure: 15 to 150 psi (1,04 to 10,35 bars) • PRS-D regulates up to 100 psi (6,90 bars) •Flow: 2 to150 GPM (0,45 to 34,05 m3/h; 7,8 to 568 l/m) •Flow with PRS-D: 5 to 150 GPM (1,14 to 34,05
Specifications	Connection- 2'' NPT Female 24 VAC 50/60 Hz (cycles/sec.) solenoid Inrush current: 0.41 A (9.84 VA) at 60Hz Holding current: 0.28 A (6.72 VA) at 60Hz •Coil resistance: 30-39 Ohms Dimensions: Hx LX

RAINBIRD 63 mm Globe Solenoid Valve Model PGA
