Name: RAINBIRD 25MM Globe Solenoid Valve with Flow Control Model DVF - Rey Lenferna
SKU: RB100DVF

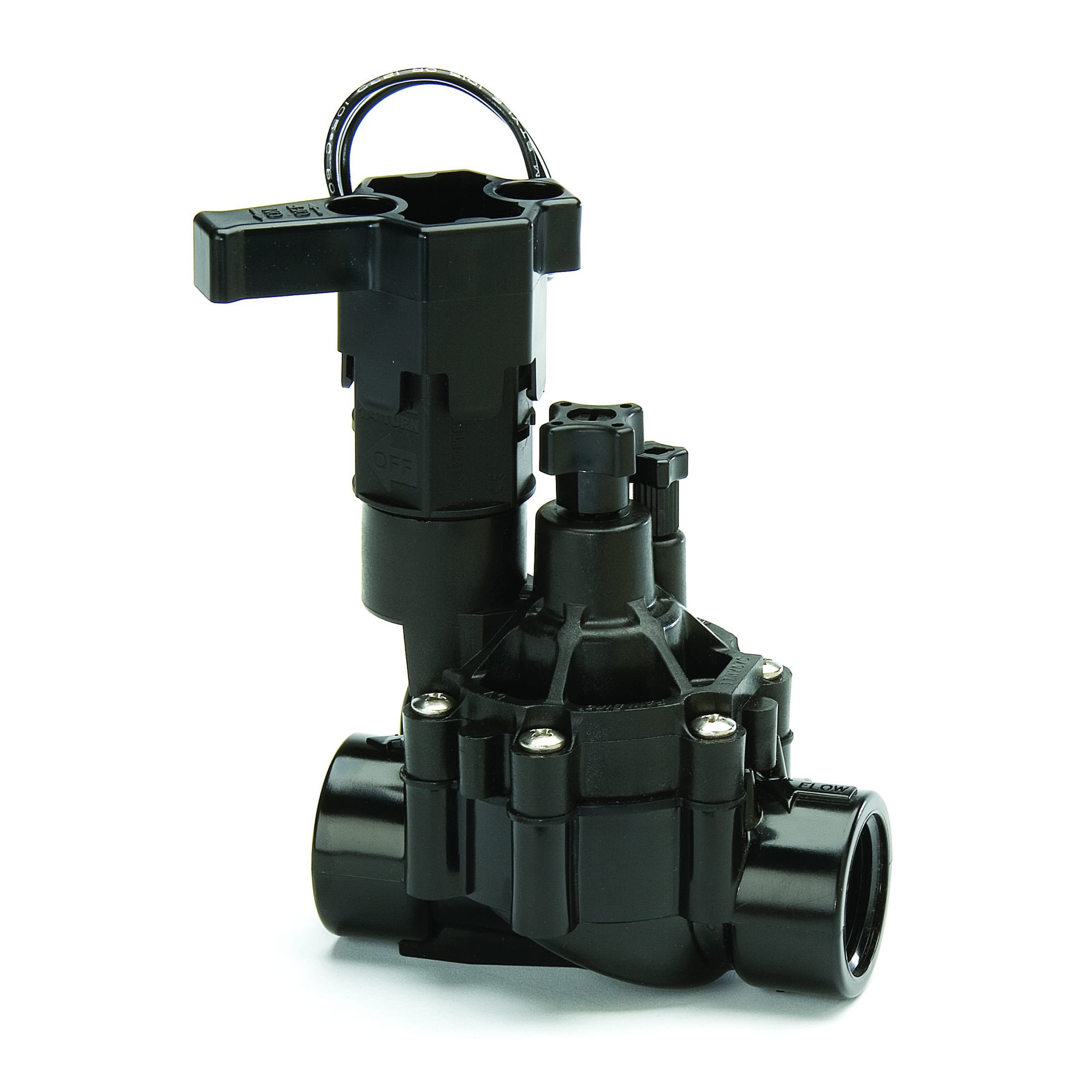

RAINBIRD 25MM Globe Solenoid Valve with Flow Control Model DVF

1” Plastic Residential Valves with flow control.
Economical irrigation valve for residential and light commercial application
60 % easier system tuning with power steering flow control.
Flow control handle is removable for vandal resistance.

This field is hidden when viewing the form
Product Model
Name*
First Last
Untitled
Email*
Phone*
Address
Street Address Address Line 2
Untitled
CAPTCHA

Additional information

Brand	RAIN BIRD
Model	RB100DVF
Operating Range	Pressure: 15 to 150 psi (1,0 to 10,4 bar) 100-DV/DVF/ASVF (non-union) Flow: 0.2 to 40 gpm (0,05 to 9,08 m3/h; 0,01 to 2,52 l/s)
Specifications	• 24 VAC 50/60 Hz (cycles per second) solenoid power requirement • 0.30 A (7.2 VA) inrush current • 0.23 A (5.5 VA) holding current • Solenoid coil resistance: 38 Ohms Dimensions: Hx LXW

RAINBIRD 25MM Globe Solenoid Valve with Flow Control Model DVF
