Name: RAINBIRD 25MM Globe Solenoid Valve Model PGA - Rey Lenferna
SKU: RB100PGA25

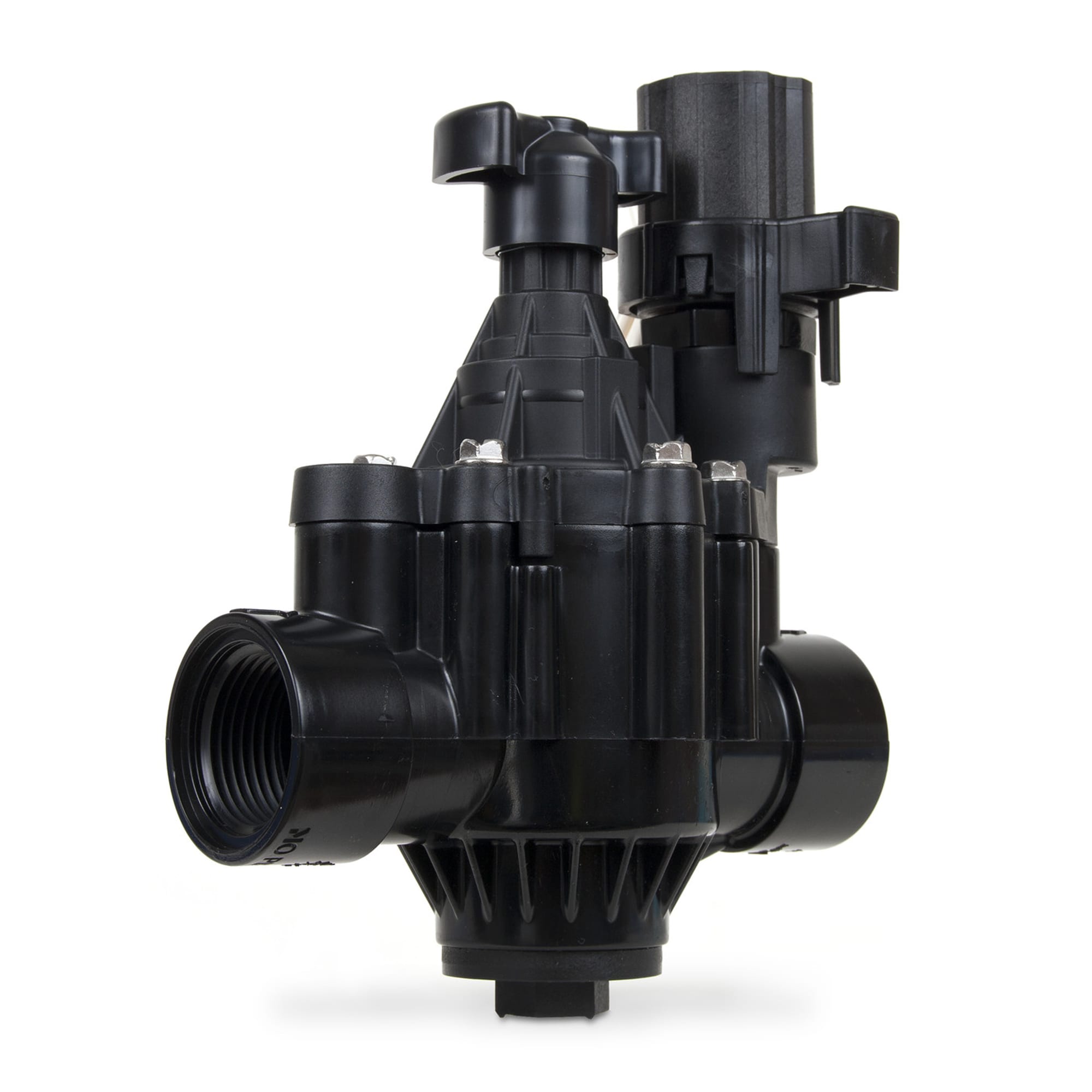

RAINBIRD 25MM Globe Solenoid Valve Model PGA

1” Plastic Globe Solenoid Valves.
Water tight seal between body and bobbet for maximum confidence, even in the most extreme conditions
Multi-drive screws.
Robust electrical design for quietand reliable performance

Hidden
Product Model
Name*
First Last
Untitled
Email*
Phone*
Address
Street Address Address Line 2
Untitled
CAPTCHA

Additional information

Brand	RAIN BIRD
Model	RB100PGA
Operating Range	Pressure: 15 to 150 psi (1,04 to 10,35 bars) PRS-D regulates up to 100 psi (6,90 bars) Flow: 2 to150 GPM (0,45 to 34,05 m3/h; 7,8 to 568 l/m) Flow with PRS-D: 5 to 150 GPM (1,14 to 34,05 m3/h; 19,2 t
Specifications	Connection- 1'' NPT Female 24 VAC 50/60 Hz (cycles/sec.) solenoid Inrush current: 0.41 A (9.84 VA) at 60Hz Holding current: 0.28 A (6.72 VA) at 60Hz Coil resistance: 30-39 Ohms Dimensions: Hx LXW-

RAINBIRD 25MM Globe Solenoid Valve Model PGA
